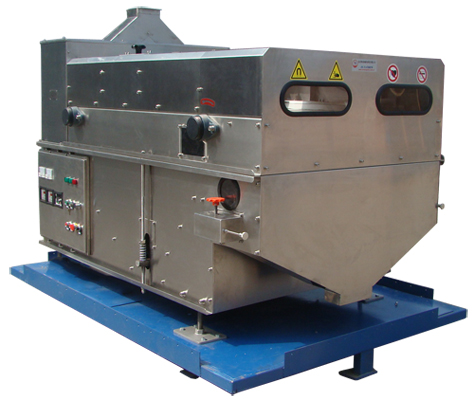

Magnetic Belt Dirt Sorter

With the special strong magnetic roller in the front end of conveyer belt, the magnetic belt dirt sorter is sepcialized in separating the micro magnetic substance and mineral substance from the material by extraordinary magnetic force, such as the clods, pumices, stones, brick chippings and so on. Meanwhile, the strong magnetic substance will be captured by the plate magnetic separator on the top of conveyer belt.

During working, the material will be fed into the machine through the speed adjustable vibrating feeder and then fall into the surface of conveyor belt equably. The strong magnetic substance will be captured firstly when the material is transported to the underneath of plate magnetic separator along with the conveyer belt. The weak magnetic substance will be captured by the strong magnetic force of magnetic roller in the front end of conveyor belt and will fall into the waste outlet naturally when they are transported to the non-magnetic scope along with the conveyer belt. The non-magnetic material will fall into the discharge hole naturally in parabolic shape and go to the next process because of the effect of centrifugal force and gravity when they are transported to the end of conveyor belt.

The machine can be used widely in material sorting field.

Benefits：

Continuous working without stopping; separating the magnetic impurities from material automatically

The feeding speed and rotate speed of magnetic roller is  linear adjustable

Technical data：

Magnetic performance: Gauss value on the surface of magnetic roller ≥15'000Gs,Gauss value on the surface of belt≥10'000Gs

Materials of housing and other parts: 304 stainless steel/316 stainless steel

Surface finish: Brushed

Customized voltage is available
