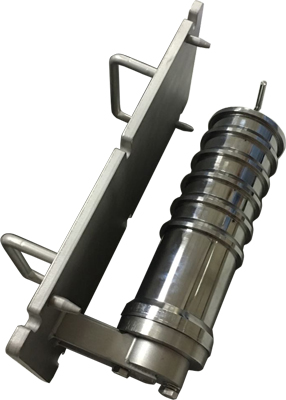

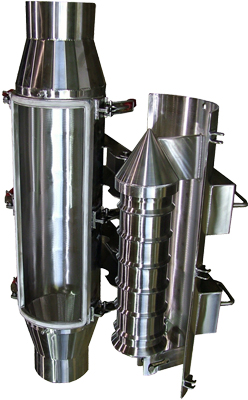

In-line Magnetic Separator
Installed in tank truck, fit for pneumatic conveying pipeline, used for filtering the residual weak magnetic substance from the material.
Benefits:
With high magnetic field strength to clean up the residual weak magnetic substance from the material effectively
Quick fitting design to connect with the tank truck easily and simply
With its own trolley to move the magnetic separator easily and flexibly
Easy-cleaning structure to wipe off Fe particles conveniently and efficiently
Technical data:
Magnetic performance: 12'000Gs
Materials of housing and other parts: 304 stainless steel/316 stainless steel
Surface finish: Sand blasting/Powder painting
Model No. |
Inlet
Amm |
Outline Dimension
BXCXD mm |
SCXZ-0814A |
DN80 |
141X570X223mm |
SCXZ-1014A |
DN100 |
141X570X223mm |
SCXZ-1216A |
DN125 |
159X570X244mm |
SCXZ-1522A |
DN150 |
216X659X305mm |
|
