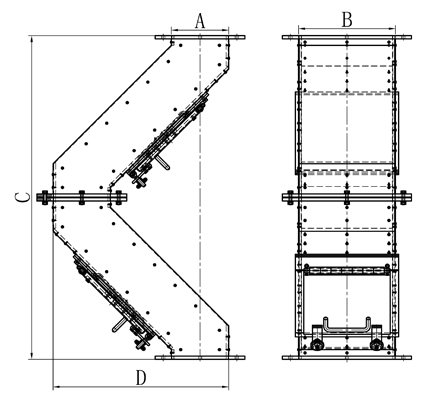

Hump Magnetic Separator - Standard version

Remove the ferromagnetic impurities from the material which conveyed by wind or free-falling because of gravity.

Fit for installing in pipeline to remove the ferromagnetic impurities from flaky, granular and powdery material effectively.

Widely used in production line of larger particles materials with high flow or powdery material with good fluidity

Benefits：

Easy-cleaning structure to wipe off Fe particles easily and efficiently

Magnetic plate connects with body of magnetic separator by hinges, it can be opened to clean up at any time afrer stopping working

Wearing parts are protected by wear-resistant material which can be changed after wearing out, it extends the service life and reduces the maintenance cost

Technical data：

Magnetic performance: 4'000Gs

Materials of housing and other parts: 304 stainless steel/316 stainless steel

Surface finish: Sand blasting/Powder painting
