Housing Magnetic Plate



Housing Magnetic Plate:



 Available for filtering Fe particles from grainy and powdery material.





Benefits

Easy-cleaning structure to wipe off Fe particles easily and efficiently

Less dust and without interrupt as the direction of material flow and taking out for cleaning is opposite

Design of quick pressure clamps to make operation efficiently

Wearing parts are protected by wear-resistant material which can be changed after wearing out,it extends the service life and reduces the maintenance cost





Technical data:

Magnetic performance: 4'000Gs

Materials of housing and other parts: 304 stainless steel/316 stainless steel

Surface finish: Sand blasting/Powder painting

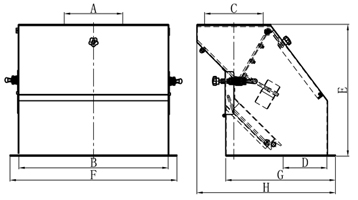

Model No.

Dimension mm

Capacity(t/h)

A

B

C

D

E

F

G

H

Wheat/Rye

Cornt/Cercal/Barley

Oat

SCXX-20

150

210

150

150

420

270

355

455

12

9

8

SCXX-30

150

310

150

150

420

370

355

455

18

15

12

SCXX-40

150

410

150

150

450

470

375

473

24

18

16

SCXX-50

150

510

150

150

450

570

375

473

30

25

20
