Rectangular Magnetic Grid：
Magnetic grid is very versatile and can be utilized in most powder, granulate and liquid applications for removal of ferrous and paramagnetic contamination down to sub micron in size.
These units can be manufactured to any size and with any number of bars to meet most application requirements. Due to the grids low profile side frame, these units can be installed into existing pipelines or feed hoppers.
Technical data：
Magnetic performance: 7'000Gs-12'000Gs
Materials of frame and tube: 304 stainless steel/316 stainless steel
Surface finish: Polished
Benefits：
- Strong magnet circuit design, Max. surface Gauss value could achieve 12'000Gs.
- No "zero" magnetic area exist.
- Waterproof and well polished magnetic bars.
- Easy-clean type and food grade can be provided on request.
- With Circular version, Rectangular version, and Cylinder version available to fit any size or shape of hopper.

|
Rectangular Magnetic Grid |
|
ITEM No.
(Ferrite series) |
ITEM No.
(NdFeB series) |
No. Bars |

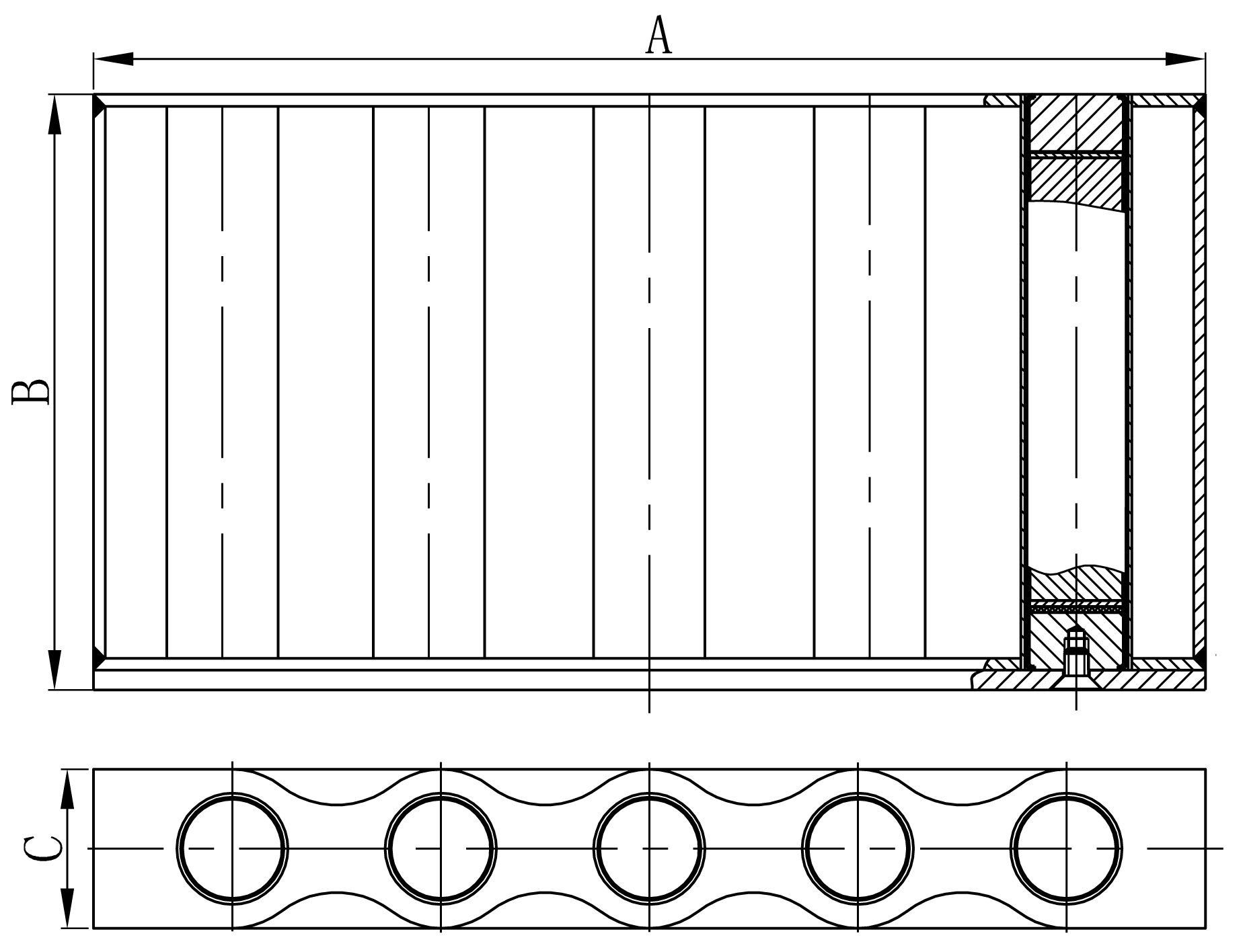

Dimensions (mm) |
Approx. Before Packing Wt.(kg) |
|
A |
B |
C |
Ferrite series |
NdFeB series |
|
OEYF2H0001 |
OEYF5H0001 |
3 |
100 |
100 |
40 |
0.7 |
0.8 |
|
OEYF2H0002 |
OEYF5H0002 |
3 |
150 |
150 |
40 |
2.2 |
2.5 |
|
OEYF2H0003 |
OEYF5H0003 |
4 |
200 |
200 |
40 |
3.6 |
4.2 |
|
OEYF2H0004 |
OEYF5H0004 |
5 |
250 |
250 |
40 |
5.3 |
6.3 |
|
OEYF2H0005 |
OEYF5H0005 |
6 |
300 |
300 |
40 |
7.3 |
8.9 |
|
OEYF2H0006 |
OEYF5H0006 |
8 |
400 |
400 |
40 |
12.1 |
15.2 |
|
OEYF2H0007 |
OEYF5H0007 |
, 10 |
500 |
500 |
40 |
18.6 |
23.7 |
|
OEYF2H0008 |
OEYF5H0008 |
12 |
600 |
600 |
40 |
26 |
33.5 |
*Customized type and size are available
Rectangular Magnetic Grid in Easy-clean type:
- Specifically designed for using in closed chutes and ducts.
- Easily inspected and cleaned.
- Come complete with handle and latches.

|
Rectangular Magnetic Grid in Easy-clean type |
|
ITEM No.
(Ferrite series) |
ITEM No.
(NdFeB series) |
Dimensions (mm) |
|
A |
B |
C |
|
OEYF2H0080 |
OEYF5H0080 |
280 |
150 |
40 |
|
OEYF2H0081 |
OEYF5H0081 |
396 |
396 |
50 |
|
OEYF2H0082 |
OEYF5H0082 |
150 |
150 |
30 |
|
OEYF2H0085 |
OEYF5H0085 |
300 |
200 |
50 |
|
OEYF2H0086 |
OEYF5H0086 |
100 |
100 |
30 |
*Customized type and size are available

Easy-Clean type
|
