Home - Products   -  Permanent Magnetic Assemblies -  Separating and Filtering
Magnetic Grids - Circular Version



Magnetic Grids-Circular Version:

  • Strong magnet circuit design, Max. surface Gauss value could achieve 12'000Gs;
  • No "zero" magnetic area exist;
  • Waterproof and well polished magnetic bars;
  • Easy-clean type and food grade can be provided on request;
  • With Circular version, Rectangular version, and Cylinder version available to fit any size or shape of hopper;
  • Customizing and designing according to the application.

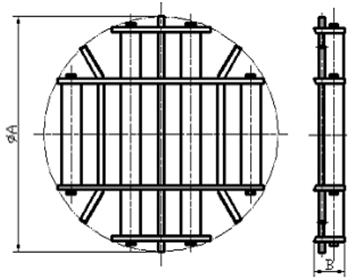

Circular Version

     ITEM No.    (Ferrite series)

      ITEM No.    (NdFeB series)

No. Bars

Dimensions (mm)

Approx. Before Packing Wt.(kg)

A

B

Ferrite series

NdFeB series

OEYF2A0101

OEYF5A0101

3

100

40

0.5

0.6

OEYF2A0102

OEYF5A0102

3

150

40

1.5

1.7







Circular Version

   ITEM No.   (Ferrite series)

   ITEM No.  (NdFeB series)

No. Bars

Dimensions (mm)

Approx. Before Packing Wt.(kg)

A

B

Ferrite series

NdFeB series

OEYF2A0103

OEYF5A0103

4

200

40

2.7

3.1

OEYF2A0104

OEYF5A0104

4

250

40

3.8

4.4

OEYF2A0105

OEYF5A0105

4

300

40

4.6

5.4

OEYF2A0106

OEYF5A0106

4

350

40

5.4

6.3

OEYF2A0107

OEYF5A0107

4

400

40

6.2

7.4

OEYF2A0108

OEYF5A0108

4

450

40

7.1

8.4

OEYF2A0109

OEYF5A0109

8

500

40

11.9

14.4

OEYF2A0110

OEYF5A0110

8

550

40

13.4

16.3

OEYF2A0111

OEYF5A0111

8

600

40

14.5

17.9
