SmCo

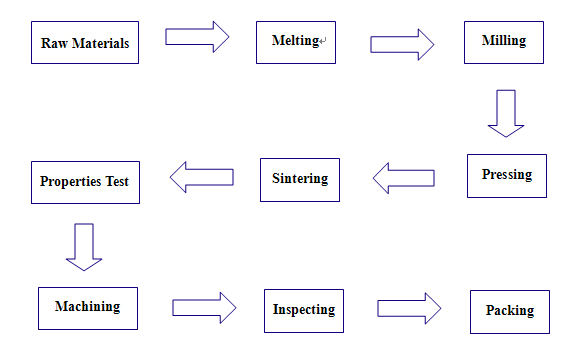

Description Performance Specification Production Process
  • High magnetic properties, outstanding thermal stability and excellent corrosion resistance, surface treatment is not needed.
  • Metallic in appearance and stable physical property.
  • As the brittleness of SmCo material, it is not suitable for complex shapes and thin disc or ring, and the SmCo magnets should be handled carefully and gently.
  • As the high purity Cabolt(99.95%) is the major component, the price of SmCo magnets is higher than other permanent magents.

Magnetic Properties

Note:

The above are the standard property values of our company, could be adjusted according to the application requirement of customer and please contact us with the detailed information.

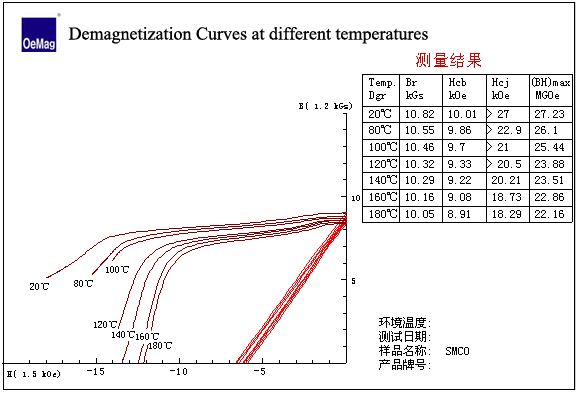

Demagnetization Curves

General Dimension and Standard Tolerance

Disc

D(mm)

H(mm)

Max

80

50

Min

1

1

Ring

OD(mm)

ID(mm)

H(mm)

Max

100

90

50

Min

1.5

1

1

Block

L(mm)

W(mm)

H(mm)

Max

120

60

60

Min

2

1

1

Note:

Above is the general dimension we make for the SmCo magnets, for the specific magnets you required, please contact us with the detail informaiton.
